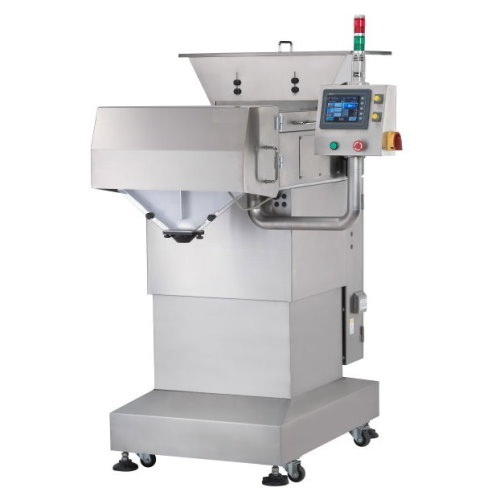

Automatic Multi-Channels Tablets/Capsule Counting Machine

Model No.: TM-420

Automatic Multi-Channels Tablets/Capsule Counting Machine TM420 is designed to feed and count any size,shape or quantity of tablet and capsule (hard shell capsules, and soft gelatin capsules are compatible) with 100% counting accuracy without change parts . The counting of these products and the indexing of the bottle to be filled is controlled by PLC and Human Machine Interface. It's simple to operate and easy to clean.

FEATURES:............



• Variable speed control for 12 tracks
• Guarantees 100% Counting Accuracy
• Speed 2500~4000 pcs/min
• Touch screen control panel with 50 memory slots
• Advances in vibratory linear feeding suits for any kind of products
• Emergency stop and Three -color indicate light
• Clean up by vacuuming dust accumulation system
• Pre-Counting increases machine outputs
• Tool-free release for counting different products
• Japan made “ Keyence” high accuracy fiber sensor
• Air-cylinder index to direct the next batch of containers into filling position
• Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement

OPTIONS:

• In-Feed and Out-Feed Conveyor
• Rejection System (Remove Miscounting Bottles)
• Lid Open and Lid Close system
• Turnkey linkage with filler, labeler and other in-line systems
• Product Quantity Level control

SPECIFICATIONS:

• Counting Speed：2500~4000pcs/min
• Counting Accuracy：100%
• Power Supply：110/220VAC, 50/60Hz
• Air requirement：200 L / minute @ 6bar
• Product Dimensions：(L)1280mm(W)1160mm(H)1690mm
